Advances in Photo-catalytic Materials for Environmental Applications

Elsalamony RA*

Egyptian Petroleum Research Institute, Cairo, Egypt

Corresponding Author:
Elsalamony RA
Egyptian petroleum research institute
Cairo, Egypt
Tel: 00201010707023
Email: radwa2005@hotmail.com

Received date: 04/04/2016; Accepted date: 17/05/2016; Published date: 27/05/2016

Visit for more related articles at Research & Reviews: Journal of Material Sciences

Abstract

The growth of industry worldwide has extremely increased the generation and accumulation of waste by products. This has caused severe environmental problems that have become a major concern. Because of this, photo-catalytic pollutant degradation provided great opportunities and challenges in the field of environmental science. TiO2 nanoparticles have been extensively investigated for photo-catalytic decomposition of organic compounds. TiO2 is considered close to an ideal semiconductor for photo-catalysis but possesses certain limitations such as poor absorption of visible radiation and rapid recombination of photo generated electron/hole pairs. In this review article, various methods used to enhance the photo-catalytic characteristics of TiO2 including self-doping TiO2, doping TiO2 with metal and non-metal. Improving catalytic efficiency and exploring the reaction mechanism of photo-catalytic degradation of dyes as a model organic compound.

Keywords

Photodegradation; Dyes; Doping TiO2; Metal and non-metal doping.

Introduction

Over two thirds of Earth's surface is covered by water; less than a third is taken up by land. As Earth's population continues to grow, people are putting ever-increasing pressure on the planet's water resources. In a sense, our oceans, rivers, and other inland waters are being "squeezed" by human activities—not so they take up less room, but so their quality is reduced. Poorer water quality means water pollution. We know that pollution is a human problem because it is a relatively recent development in the planet's history: before the 19th century Industrial Revolution, people lived more in harmony with their immediate environment. As industrialization has spread around the globe, so the problem of pollution has spread with it. When Earth's population was much smaller, no one believed pollution would ever present a serious problem. It was once popularly believed that the oceans were far too big to pollute. Today, with around 7 billion people on the planet, it has become apparent that there are limits. Pollution is one of the signs that humans have exceeded those limits.

Water pollution can be defined in many ways. Usually, it means one or more substances have built up in water to such an extent that they cause problems for animals or people. Water pollution almost always means that some damage has been done to an ocean, river, lake, or other water source. A 1969 United Nations report defined ocean pollution as: "The introduction by man, directly or indirectly, of substances or energy into the marine environment (including estuaries) resulting in such deleterious effects as harm to living resources, hazards to human health, hindrance to marine activities, including fishing, impairment of quality for use of sea water and reduction of amenities."

Most water pollution doesn't begin in the water itself. Take the oceans: around 80 percent of ocean pollution enters our seas from the land. Virtually any human activity can have an effect on the quality of our water environment. When farmers fertilize the fields, the chemicals they use are gradually washed by rain into the groundwater or surface waters nearby. Sometimes the causes of water pollution are quite surprising. Chemicals released by smokestacks (chimneys) can enter the atmosphere and then fall back to earth as rain, entering seas, rivers, and lakes and causing water pollution. That's called atmospheric deposition. Water pollution has many different causes like: Sewage, Nutrients, Chemical waste, radioactive waste, Oil pollution, Plastics and Alien species. The common pollutants include toxic organic compounds like chlorinated and non-chlorinated aliphatic and aromatic compounds, dyes, inorganic compounds like heavy metals, noxious gases like NOx, SOx, CO and NH3, and pathogens like bacteria, fungi and viruses.

Advanced Oxidation Processes

However; the research community aims to develop clean and green processes to degrade the pollutants before they are admitted into the atmosphere and water bodies. Photo-catalysis has become an integral part of the Advanced Oxidation Processes (AOPs), refers to a set of chemical treatment procedures designed to remove organic (and sometimes inorganic) materials in water and waste water by oxidation through reactions with hydroxyl radicals (OH) [1]. In real-world applications of wastewater treatment, however, this term usually refers more specifically to a subset of such chemical processes that employ ozone (O3), hydrogen peroxide (H2O2) and/or UV light [2]. One such type of process is called in situ chemical oxidation. AOPs rely on in-situ production of highly reactive hydroxyl radicals (OH). These reactive species are the strongest oxidants that can be applied in water and can virtually oxidize any compound present in the water matrix, often at a diffusion controlled reaction speed. Consequently, OH reacts unselectively once formed and contaminants will be quickly and efficiently fragmented and converted into small inorganic molecules. Hydroxyl radicals are produced with the help of one or more primary oxidants (e.g. ozone, hydrogen peroxide, oxygen) and/or energy sources (e.g. ultraviolet light) or catalysts (e.g. titanium dioxide). Precise, pre-programmed dosages, sequences and combinations of these reagents are applied in order to obtain a maximum OH yield. In general, when applied in properly tuned conditions, AOPs can reduce the concentration of contaminants from several hundred ppm to less than 5 ppb and therefore significantly bring COD and TOC down, which earned it the credit of ?water treatment processes of the 21st century [3].

The AOP procedure is particularly useful for cleaning biologically toxic or non-degradable materials such as aromatics, pesticides, petroleum constituents, and volatile organic compounds in waste water [4]. Additionally, AOPs can be used to treat effluent of secondary treated wastewater which is then called tertiary treatment [5]. The contaminant materials are converted to a large extent into stable inorganic compounds such as water, carbon dioxide and salts, i.e. they undergo mineralization. A goal of the waste water purification by means of AOP procedures is the reduction of the chemical contaminants and the toxicity to such an extent that the cleaned waste water may be reintroduced into receiving streams or, at least, into a conventional sewage treatment. Recently, Ultrasound (US), microwave radiation and electrolysis are being coupled to the above AOPs in order to further enhance the decomposition of the pollutants.

Photo-catalysis has found several applications in the field of environment: destruction of aqueous pollutants [6], air purification, metal recovery, and especially more recently, production of materials such as self-cleaning glass surfaces [7]. Applications for photo-catalytic decontamination of water have already arrived at the stage of pilot plant. Reactors are artificial radiation source on the market. Despite the small percentage of the absorbed solar radiation (3.5%) by TiO2 solar processes have been developed [8].

Definition of Photo-Catalysis

The catalyst is in the heart of the photo-catalytic process. Since photo-catalysis is based on the excitation of a photocatalyst with irradiation of light energy at least equal to that of the Band Gap Energy (BE). These photocatalyst are more commonly called semiconductors. There are many semiconductor metal oxides used for photo-catalytic properties namely: TiO2, ZnO, ZnS, WO3, CdS, SnO2, GaP etc.

Among the list of semiconductors reported in the literature, TiO2 has proven most suitable for most common environmental applications. Because it is biologically and chemically inert, resistant to chemical corrosion and can work at ambient temperature and pressure, without addition of chemical species, low toxicity, low cost, and abundance as raw material. TiO2 an important material in many practical applications, and, in commercial products ranging from drugs to foods, cosmetics to catalysts, paints to pharmaceuticals, and sunscreens to solar cells in which TiO2 is used as a desiccant, brightener, or reactive mediator [9].

Titanium dioxide or titania (TiO2) was first produced commercially in 1923. It is obtained from a variety of ores. TiO2 is a typical n-type semiconductor. It possesses three crystal polymorphs in nature: brookite, anatase, and rutile [10]. Brookite is rare in nature, uncommon, unstable and hence does not feature in discussion of catalyst materials. Among them, the TiO2 exists mostly as rutile and anatase phases which both of them have the tetragonal structures. However, rutile is a high-temperature stable phase and has an optical energy band gap of 3.0 eV (415 nm), anatase is formed at a lower temperature with an optical energy band gap of 3.2 eV (380 nm). Additionally, TEM was used to further examine the crystallite/particle size, the crystallinity and morphology of samples. TiO2 powders in rutile phase consist of both spherical and cubic shape; on the contrary, the particle of TiO2 in anatase phase has mostly spherical morphology [11]. In this review, we will first describe the mechanism of UV photocatalysis, and the synthesis of nano-TiO2 by sol-gel technique. We then discuss the different doping methods of inducing the visible light response of TiO2. Finally; the photo-catalytic degradation mechanism of dyes as water contaminants are discussed.

Mechanism of Photo-Catalysis

The principle of photo-catalysis is based on the excitation of a semiconductor (usually titanium dioxide TiO2) by light (UV or visible). Under the action of photons, the semiconductor (or catalyst) produces highly oxidizing free radicals allowing the destruction of compounds adsorbed on its surface. This produces electron-hole (e/h+) pairs as in Equation (1) (Figure 1):

Equation        (1)

The semiconductor TiO2 converts photon energy into chemical energy by oxidation-reduction reaction; where cb is the conduction band and vb is the valence band. Thus, as a result of irradiation, the TiO2 particle can behave either as an electron donor or acceptor for molecules in contact with the semiconductor. The electron and hole can recombine, releasing the absorbed light energy as heat, with no chemical reaction taking place. On the other hand, they can participate in redox reactions with adsorbed species as the valence band hole is strongly oxidizing while the conduction band electron is strongly reducing. On the semiconductor surface, the excited electron and the hole can participate in redox reactions with water, hydroxide ion (OH), organic compounds or oxygen leading to mineralization of the pollutant.

material-sciences-General-mechanism

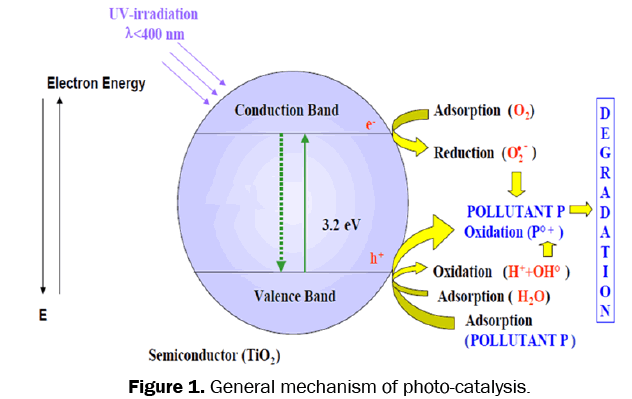

Figure 1: General mechanism of photo-catalysis.

In fact, research shows that the charges can react directly with adsorbed pollutants, but reactions with water are predominant since the water molecules are more abundant than contaminant molecules. Consequently, oxidation of water or OH− by the hole produces the hydroxyl radical (·OH), a powerful oxidant. An important reaction of the conduction band electron is reduction of adsorbed oxygen to oxygen radicals and this prevents the electron from recombining with the hole and results in an accumulation of oxygen radicals that can also participate in degrading contaminants in solution [12,13]. A mechanism involving radical reactive species, through the following series reactions Equations (2 - 6):

Equation

Published work indicate that heterogeneous photo-catalytic process involves at least five separate reaction steps [14] and include (1) diffusion of reactants to the surface of semiconductor, (2) adsorption of reactants onto the surface of semiconductor, (3) reaction on the surface of semiconductor, (4) desorption of products from the surface of the semiconductor and (5) diffusion of products from the surface of the semiconductor. There are two routes through which OH radicals can be formed—the reaction of the valence-band holes with either adsorbed H2O or with the surface OH groups on the TiO2 particle. These processes have been summarized using appropriate equations [15].

Preparation Methods Of TiO2 Nano-Particles

For photo-catalytic applications, nano-sized TiO2 is preferred compared to bigger sized TiO2 particles. The two most important properties of a nano material, which makes it superior to other microscopic or macroscopic particles for applications in catalysis, are (i) the high surface to volume ratio, and (ii) the quantum confinement at the nano scale. The first property results in catalysts with high surface area and high porosity, which ensures enhanced reaction rates due to the high level of interaction of the reactants with the active sites. The second property governs the transport of electrons and holes from the bulk to the surface of the material, whose length scale is also of the order of a few nanometers (called as electron Bohr radius). Moreover, for photoapplications, the catalyst should absorb, and not block or scatter, incident radiation, and generate charge carriers by band gap excitation. This is possible only with nano-sized semiconductor materials with suitable band gap energy. Therefore, owing to the enhanced molecular transport properties at the surface, it is evident that nano-sized materials are beneficial as photocatalysts. Nano-TiO2 photocatalysts have been synthesized in different shapes and morphologies, which include, nanoparticles, nanotubes [16], nanopillars and nanowire arrays [17], nanorods [18], mesoporous structures [19] nanobowls, nanowhiskers, aerogels, nanosheets, opal and inversed opals [20,21].

The synthesis routes can be broadly classified as solution phase and gas phase techniques. Solution phase synthesis is the most preferred technique for the preparation of TiO2 in the form of powders and thin films. Chemical precipitation method [22], Chemical Vapour Deposition (CVD) [23], the sol-gel technique [24], sputtering [25], hydrolysis, micro-emulsion method [26], spray deposition [27], aerosol-assisted chemical vapour deposition [28], thermal plasma [29], hydrothermal method [30], microwave assisted hydrothermal synthesis [31], solvothermal method [32] and flame combustion method [33] electrodeposition [33], sonochemical method [34], and microwave method [35].

Each of the above synthesis methods possesses a unique advantage over the other techniques and the characteristics of the final product vary from one method to another. The TiO2 nanoparticles like the phase composition (anatase : rutile), particle size, porosity, surface area, band gap and surface hydroxyl content can be tailored by varying the reaction conditions like: the precursor compound (TiCl4, titanium(IV) isopropoxide, etc.), hydrolyzing agent (in the case of sol-gel synthesis), fuel (in the case of solution combustion synthesis), molar composition of the reactants, reaction temperature, reaction time (ageing time), calcination temperature and presence of gas atmosphere (air, Ar, NH3). Among these methods sol-gel method is a simple method to synthesis TiO2 nanoparticles.

Sol-Gel Method

It is a versatile process used in making various ceramic materials. The sol-gel technique has been reviewed by a number of investigators [36,37].

In sol-gel chemistry, nanometer-sized particles form and then connect with one another to create a three-dimensional (3D) solid network. This technique allows scientists to change the composition and structure of materials on the nanometer (billionthof- a-meter) scale. In addition, this process can be modified to produce sol-gel materials in different forms, such as powders, films, fibers, and freestanding pieces of material called monoliths. For example, a gel can be dried in a sol-gel process to make aerogels, a special class of ultralow-density materials. The sol-gel approach is a cheap and low-temperature technique finely controls the product’s chemical composition. Even small quantities of dopants, such as organic dyes and rare earth elements, can be introduced in the sol and end up uniformly dispersed in the final product. The inherent advantages of the sol-gel process are [38]:

1. Better homogeneity from raw materials.

2. Better purity from raw materials.

3. Lower temperature of preparation.

4. Good mixing for multi-component systems.

5. Effective control of particle size, shape, and properties.

6. Better products from the special properties of the gel.

7. The creation of special products such as films.

8. The creation of new non-crystalline solids outside the range of normal glass formation.

9. The possibility of designing the material structure and property through the proper selection of sol-gel precursor and other building blocks.

Sol-gel derived materials have diverse applications in optics, electronics, energy, space, bio-sensors, medicine (e.g., controlled drug release), and in reactive material and separation (e.g., chromatography) technology [39,40].

Procedure of Sol-Gel Method

In a typical sol-gel process, a colloidal suspension, or a sol, is formed from the hydrolysis and polymerization reactions of the precursors, which are usually inorganic metal salts or metal organic compounds such as metal alkoxides. Complete polymerization and loss of solvent leads to the transition from the liquid sol into a solid gel phase. The precursor sol can be either deposited on a substrate to form a film, casted into a suitable container with the desired shape (e.g., to obtain monolithic ceramics, glasses, fibers, membranes, and aerogels), or used to synthesize powders (e.g., microspheres, nanospheres).

Thin films can be produced on a piece of substrate by spin-coating or dip-coating. A wet gel will form when the sol is cast into a mold, and the wet gel is converted into a dense ceramic with further drying and heat treatment. A highly porous and extremely low density material called an aerogel is obtained if the solvent in a wet gel is removed under a supercritical condition.

Ceramic fibers can be drawn from the sol when the viscosity of a sol is adjusted into a proper viscosity range. Ultrafine and uniform ceramic powders are formed by precipitation, spray pyrolysis, or emulsion techniques. Under proper conditions, nanomaterials can be obtained.

Nanostructured TiO2 has been synthesized with the sol-gel method from hydrolysis of a titanium precursor. This process normally proceeds via an acid-catalyzed hydrolysis step of titanium (IV) alkoxide followed by condensation. The development of Ti-O-Ti chains is favored with low content of water, low hydrolysis rates, and excess titanium alkoxide in the reaction mixture. Three dimensional polymeric skeletons with close packing result from the development of Ti-O-Ti chains. The formation of Ti(OH)4 is favored with high hydrolysis rates for a medium amount of water. The presence of a large quantity of Ti-OH and insufficient development of three-dimensional polymeric skeletons lead to loosely packed first order particles. Polymeric Ti-O-Ti chains are developed in the presence of a large excess of water. Closely packed first order particles are yielded via a three-dimensionally developed gel skeleton. Figure 2 summarized procedures for preparation of nanoparticles by sol-gel method.

material-sciences-nanoparticles

Figure 2: Summarized procedures for preparation of nanoparticles by sol-gel method.

In general; this method based on the mixing, polymerizing, hydrolysis, aging and calcination of various titanium molecular precursors in aqueous solutions or an organic solvent [41-46]. All these factors with new condition can be used for making and controlling the diameter of nanoparticles [47,48]. In view of the synthetic methods there is no letter, known to us, which is used amount of solvent and precursor, mixing method, gelatinizing time, PH control, aging, using ultrasound waves [49] and calcination temperature for synthesis and controlling of diameter of TiO2 nanoparticles.

In comparison to other phases, using anatase phase of TiO2 nanoparticles with controlled diameters, the high homogeneity, good morphology, high surface area and porosity is very suitable to photocatalystic applications because of higher electron mobility, lower fixed dielectric and density [50-52]. However, thermodynamic stability is particle-size dependent and at particle diameters below 15 nm, anatase is more stable than rutile [53].

Anatase TiO2 nanoparticles was successfully synthesized by the sol-gel method using TiCl4 as a precursor and just ethanol solution [54]. The size of anatase TiO2 nanoparticles could be promoted by decreasing the gelatinizing time and using ultrasound waves. The diameter of anatase TiO2 nanoparticles increased with increasing calcination temperature and/or gelatinization time; moreover the crystalinity, homogeneity and morphology of TiO2 nanoparticles become better. Independent changes of calcination temperature and/or gelatinization time accompanied by ultrasonic waves and specific PH value could alter diameter of the TiO2 nanoparticles. The results appeared that the excellent TiO2 nanoparticles exhibited 500°C annealing temperature and 1/2 volumetric percentage of precursors [55]. Sol gel is the excellent method to synthesis of TiO2 nanoparticles semiconductor, increasing of efficiency of photo-catalytic degradation for pollutions due to increase in surface area and decreasing in particle size distribution and also the generation of nanoparticles lead to a high-throughput and cost-effective procedures.

Venkatachalam et al. [56] prepared TiO2 by sol-gel method using titanium (IV) isopropoxide. Effect of hydrolyzing agent, reactant molar ratio, aging temperature, aging time and calcinations temperature were studied; maximum surface area=125 m2 g−1 ;min. crystallite size=6 nm; band gap=3.2±0.1 eV; mixture of anatase and rutile phase was obtained. Highly crystalline anatase TiO2 nanoparticles with different sizes and shapes could be obtained with the polycondensation of titanium alkoxide in the presence of tetramethyl ammonium hydroxide [57,58]. Figure 3 shows the TEM images of TiO2 nanoparticles prepared by sol-gel method.

Alternative Method for Synthesis TiO2

The sol-gel method requires an acid or base catalyst in order to drive hydrolysis and poly-condensation processes. TiO2 nanoparticles in acid or base solution are then obtained after calcination at high temperature. Therefore, the acid or base nature of TiO2 sol and high temperature calcination limit its application, including the choice of substrates [5860]. Use of Peroxo Titanic Acid (PTA) is an alternative method for synthesis of pure anatase TiO2 under neutral pH and low temperature conditions. This method was also reported as an environmental friendly method for synthesis of TiO2 because peroxotitanium complex molecules can be converted to TiO2 nanoparticles at relatively low temperature (100°C) [61]. It was already observed that the photo-catalytic activity of TiO2 depends on its crystalline structure, crystal size, and surface area. Titanium tetrachloride (TiCl4) was applied to synthesize peroxotitanium solution and it was noted that TiO2 nanopowder with a high surface area can be obtained after heating at 80°C [62]. Nanoparticles with single anatase phase can be obtained from alkoxide precursor even near room temperature if synthesis conditions are appropriately controlled [63]. The crystalline sizes of PTA-derived anatase from titanium alkoxide precursor are correspondingly smaller than that from TiCl4 precursor with a same calcination temperature. While the surface of TiCl4 derived titania is easily attached by large amounts of NH4+species, no impurity such as organic species and fewer amounts of –O–O– species are detected on the surface of alkoxide derived anatase. Alkoxide-derived anatase has a bimodal pore system inside the mesoporous range with a greater value of specific surface area or pore volume as compared to the TiCl4 derived anatase. TiO2 nanoparticles from titanium alkoxide precursor display a much better photo-catalytic activity in comparison with those from TiCl4 precursor, owing to their smaller crystalline sizes, better porosities, and preferable surface properties.

material-sciences-tetramethylammonium

Figure 3: TEM images of TiO2 nanoparticles prepared by hydrolysis of Ti(OR)4 in the presence of tetramethylammonium hydroxide [57].

A non-hydrolytic sol–gel process has been employed for the preparation of TiO2 NPs [6467]. Titanium tetrahalides, typically titanium tetrachloride (TiCl4), have been utilized in this process. TiCl4 was reacted with an oxygen donor, such as diisporopylether, or a titanium alkoxide, typically titanium tetraisopropoxide [68,69]. Since these reactions were conducted in organic solvents without the presence of H2O (which can also act as an oxygen donor), one of the advantages of this non-hydrolytic sol–gel process is the ability to control the amount of oxygen in the entire process, and this kind of control is extremely attractive for the size control of TiO2 NPs [64,66]. The first application of Urea-hydrogen peroxide (UHP; CO(NH2)2·H2O2) for metal oxide preparation reported by UHP can possibly play multiple roles, as an oxidation reagent as well as a donor of water which can cause hydrolysis, and urea which can coordinate to Lewis acid sites. Spheroid anatase TiO2NPs have been successfully prepared from TiCl4 using Urea Hydrogen Peroxide (UHP) as an oxygen donor through a reaction at 80°C for 30–70 h. The anatase TiO2 NPs exhibited high dispersibility in water, probably due to the presence of urea. The formation of Cl2 as well as a comparison with the results of control experiments performed without UHP suggests that anatase TiO2 NPs were formed via direct oxidation by UHP.

The uniformity of nanoparticles is of remarkable importance because the materials properties are generally directly related to particular characteristics such as size and shape [70,71]. In addition, uniform nanoparticles are potentially required in the area of nanotoxicology to study the effect of nanoparticle size. Thus, a controllable and simple methodology to design monodisperse titania nanoparticles can lead to highly efficient performing materials. Recently, a great deal of research efforts have been devoted to the preparation of monodisperse TiO2 particles. Eiden-Assmann et al. [72] discussed that particle size and distribution could be controlled by the ionic strength. It has indeed been reported to be directly related to the concentration of salt. These authors prepared monodisperse TiO2 particles (4200 nm in diameter) using nitrates, KCl, NaCl, CsCl, and LiCl solutions under an inert atmosphere. Han et al. [73] reported an efficient, environmentally friendly and facile sol–gel approach for the controllable synthesis of monodisperse and highly uniform TiO2 nanoparticles of various sizes in the 10–300 nm range employing different concentrations of a CaCl2 solution. The prepared TiO2 nanoparticles were calcined at 500°C for 1 h to yield nanocrystalline anatase TiO2. To obtain monodisperse nanoparticles by the sol–gel method, a careful control of nucleation and nanoparticle growth is necessary. The concentration of CaCl2 solution could be effectively varied as a critical parameter in the preparation of various nanomaterials. Light scattering measurements of these experiments pointed out that Titania nanoparticles as small as 8–10 nm could be synthesized (Figure 4).

material-sciences-TEM-micrographs

Figure 4: TEM micrographs of monodisperse titania nanoparticles of different sizes before (a, c) and after calcination (b, d, e).

Improving Photo-Activity Of TiO2

As any semiconductor, TiO2 is characterized by a band structure in which the energy levels of the valence band (highest occupied level) and conduction band (lowest unoccupied level) are separated by a band gap (Eg) of ca.3.2 ev in the case of anatase [74]. A photo-catalytic event is initiated when the catalyst is activated by light with an energy content that is sufficient to overcome the band gap [75]. The incident light wavelength is related to its energy content according to Eq. (8).

Equation      (3)

with E, energy content; h, Planck’s constant (6.63×10−34 Js); υ, frequency of incident light; c, speed of light (3×108 ms−1); λ, incident light wavelength. In the case of TiO2 anatase the band gap energy corresponds to UV light with a wavelength of 388 nm or shorter to bridge the band gap. This enlightens one of the biggest limitations of TiO2 photo-catalysis, as UV light only contributes to ca.5% of the entire solar spectrum. It would therefore be of tremendous interest to extend the photo-catalytic activity toward the visible light region (400–700 nm) that contributes to an approximate additional 40% of the spectrum [76].

A lot of effort has been devoted to improve the photo-electronic properties of TiO2 in order to circumvent tone of the two major limitations of TiO2 photo-catalysis

i) Tendency for photo generated charge carriers to recombine

ii) Photoactivity window restricted to UV illumination

Therefore, starting one decade ago, efforts have been devoted to extending the spectral response of pure TiO2 material (mainly anatase TiO2) to visible light. These efforts have self-doping TiO2, doping TiO2 with non-metal atoms (anion doping) and metal (cation) doping. Co-doping with several elements simultaneously is a variation on the same theme.

Doping

Usually doping involves the use of metals or non-metals and is designed to extend the photo-catalytic activity of a semiconductor lower energy excitation. Technically, doping is the introduction of foreign elements into the parent photocatalyst without giving rise to a new crystallographic forms, phases or structures and the aims are to enhance the net separation of photogenerated charges and thereby efficiently harness the wide visible-light component of about 43% in the solar spectrum as opposed to the narrow ultraviolet component of 5%. It is thus an area of increasing research activity in photo-catalysis.

Self-doping: The term ?self-doping? refers to the fact that the TiO2 semi-conductor is changed without the introduction of other metals or non-metals. It is achieved by disrupting the stoichiometric oxygen balance by generating vacancies in the lattice, giving rise to Ti3+ sites [77]. Oxygen vacancies are indeed known to be good e− traps. These trapping states are located just below the conduction band. After visible light absorption they are promoted to the surface where they can participate in surface reactions, which have for instance been employed in the gas phase photo-catalytic oxidation of NO [78,79]. Mul’s group reported the one-step synthesis of blue colored, Ti3+-rich TiO2 that is active under visible light illumination [80], but such materials can suffer from stability issues. On the other hand, Pillai’s group recently described the visible light activity of oxygen rich TiO2. This was attributed to an upward shift of the valence band after thermal decomposition of peroxo-TiO2 complexes [81]. The material remained stable up to 900°C due to an increased Ti-O- Ti bond strength.

Metal (cation) doping: It is easier to replace Ti4+ in TiO2 with a cation than to substitute O2– with another anion because of the difference in the charge states and ionic radii [82]. Nano-materials show a higher tolerance to structural distortion than bulk materials due to their inherent lattice strain. As a result, the surface modification of TiO2 nanoparticles appears to be more beneficial than the modification of bulk TiO2 [83]. Modify pure photo-catalyst materials with metal ions, especially d- block metal ions such as Fe3+ and Cr3+ results in the insertion of impurity energy levels between the parent conduction and valence bands. In this case, the inserted energy levels provide sub-bandgap irradiation from which electrons can be excited from dopant d-band to conduction band or from valance band to dopant d-band by lower energy photons than are required by the pure photo-catalysts (Figure 5). The resulting energy levels of the dopant states and resulting photo-catalytic activity strongly depend on several factors: the chemical nature of the dopant, its concentration and its chemical and structural environment. It is obvious that every metal will exhibit a different effect on the activity and even for a given metal cation, the resulting effect may differ depending on the synthesis or reaction conditions [84]. With regard to dopant concentration, there is a consensus that at low amounts, the dopants act as trapping sites that can improve charge separation and introduce intermediate energy levels in the band gap that promote electron excitation at longer (visible light) wavelengths. At higher concentrations they can become recombination sites [85]. Joshi et al. [86] reported the adverse effect of doping TiO2 with transition metal ions on photo-catalytic activity because of the formation of localized d-states in the band gap of TiO2. Localized d-states act as trapping sites that capture electrons from the conduction band or holes from the valence band. Hence, there often exists an optimum amount of dopant, which his typically in the order of 1 wt% or lower (TiO2 basis). The influence of the structural environment of the dopant is illustrated by Sun et al., who did not observe visible light activity when the cations were present as surface complexes [87]. The requirement for ion incorporation in the bulk lattice is also confirmed by Kang et al. [88]. Metal ions that are not well incorporated in the lattice may block active sites at the surface and lead to lower activities.

material-sciences-doping-cations

Figure 5: Schematic illustration of the effect of doping with cations (dopant energy level arbitrarily chosen) and anions on the band gap.

From a chemical point of view, TiO2 doping is equivalent to the introduction of defect sites like Ti3+ into the semiconductor lattice, where the oxidation of Ti3+ species is kinetically fast compared with the oxidation of Ti4+. The differences in photoactivity derive from the change in the diffusion length of the minority carriers [89]. For optimal e-/h+ separation, the magnitude of the potential drop across the space-charge layer should not fall below 0.2 V [90]. The dopant content directly influences the rate of e-/ h+recombination by the equation: W=(2 ε εoVs/eNd), where W is the thickness of the space-charge layer, ε is the static dielectric constant of the semiconductor, is the static dielectric constant in a vacuum, Vs is the surface potential, Nd is the εo number of dopant donor atoms, and e is the electron charge [91]. As the concentration of the dopant increases, the space-charge region becomes narrower and the electron hole pairs within the region are efficiently separated by the large electric field before recombination. However, when the concentration of doping is high, the space-charge region is very narrow so the penetration depth of light into TiO2 greatly exceeds the width of the space-charge layer. Therefore, the rate of recombination of photo-generated electron-hole pairs in the semiconductor increases because there is no driving force to separate them. Consequently, there is an optimum concentration of dopant ions where the thickness of the space-charge layer is similar to the depth of light penetration.

One recent trend that emerged the last five to ten years is doping with metals from the lanthanide group of the periodic table. Especially doping with Ce is a promising approach. It has a high thermal stability, as well as adsorption selectivity that may improve adsorption of pollutants at the catalyst surface, as has been shown in the case of nitrite adsorption on 0.7 wt% Ce-TiO2 [92]. Another special feature of Ce is that it acts as a good structural promoter. Ce doping leads to well-defined mesoporosity and an increased thermal stability of the anatase phase [93], which is beneficial for gas phase applications that benefit strongly from increased surface area. Several researchers have observed are tradition in the crystal growth and a suppression of the thermal anatase to rutile recrystallization [94]. This structural stabilizing effect is attributed to the formation of Ti-O-Ce species at the surface, as a consequence of the large atomic radius that prevents Ce from being incorporated in the TiO2 lattice [95]. A final aspect of Ce doping is the increased visible light absorption. The Ce3+/Ce4+ redox potential (1.8 eV) lies within the TiO2 band gap. Consequently, are d-shift is observed in the range of 400–500 nm after doping with Ce [96].

Transition metal doping: There are a number of issues associated with metal ion doping, related to the efficiency of subsequent photo-catalytic processes. Whereas the presence of metal dopants was found in some cases to enhance charge separation as well as interfacial charge transfer [97] in many other cases, the metal dopants actually resulted in rapid charge recombination through their switchable redox states, for example, Fe3+ ↔ Fe2+ and thereby reducing the electron diffusion length and lifetime [98-100]. This is one of the reasons for the reduced quantum efficiency in many photo response-extended doped photocatalysts.

Grätzel et al. [101] studied the effect of doping TiO2 with transition metals such as Fe, V, and Mo by electron paramagnetic resonance.

Choi et al. doped TiO2 with 21 transition metal ions and investigated their photo-catalytic activities [102]. Visible-light photo-responses were observed for TiO2 photocatalyst as a result of most of these metal ion doping. Extensive research on the enhancement of TiO2 photo-catalytic activities has been performed through doping of transition and rare earth metal ions, especially for air and water sanitization applications [103,104]. Among the various metal ions studied by Choi et al., increased photo-catalytic activity was identified for Mo, V, Re, Ru, Fe, Rh, and Os ions doped TiO2 [103].Whereas Al and Co ions reduced the activity. Fe and Cu ions create additional energy levels near the valence band as well as conduction band of TiO2, which result in the trapping of both electrons and holes. Consequently, it is highly recommended to dope TiO2 with either Fe or Cu ions to obtain superior photo-catalytic activity. Hashimoto et al. designed and fabricated Cu(II) and Fe(III) grafted TiO2 photocatalysts for efficient visible-light induced decomposition of 2-propanol to CO2 via acetone [104]. In this case, visible-light activation was caused by the interfacial charge transfer from the valence band holes to Cu(II) ions. Cu(I) ions formed by the reduction of Cu(II) also act as a multi-electron oxygen reduction catalyst. Fe(III)-grafted rutile TiO2 displayed optical absorption in the visible region above 400 nm, which resulted from the interfacial charge transfer from the valence band of TiO2 to the surface Fe(III) species.

Superior quantum efficiency of 22% was observed for Fe(III)/TiO2 in the visible-light region (400–530 nm), and photo-catalytic activity can be maintained up to 580 nm with a quantum efficiency of 10%. High performance of Fe(III)/TiO2 was attributed to the accumulation of photogenerated holes in the valence band of TiO2 and the catalytic reduction of oxygen by photoreduced Fe(II) species on TiO2 surface (Figure 6). Peng et al. investigated the photo-catalytic activity of Be doped TiO2 [105]. They found that metal ion doping close to the surface improves charge carrier separation, whereas deep doping accelerates carrier recombination. These findings were in good agreement with the results of Choi et al. [103]. Wu et al. investigated the effects of transitional metal ions (Cr, Mn, Fe, Co, Ni and Cu) doping on the photo-catalytic activity of TiO2 through the photo-catalytic oxidation of acetic acid [106]. Enhanced photo-catalytic activities were observed for Cu, Mn and Fe ions doped TiO2 as they can trap electrons as well as holes, whereas Cr, Co and Ni ions doped samples were not much active as they can trap only one charge carrier. Dhanalakshmi et al. investigated the dye sensitized hydrogen production efficiency of Cu-modified TiO2 and compared with that of Pt-doped compositions and the enhancing effect was found to be comparable [107].

A ten-fold enhancement in the hydrogen production efficiency was demonstrated at an optimum Cu-loading. Xu et al. [108] compared photo-catalytic activities of various (La, Ce, Er, Pr, Gd, Nd and Sm) rare earth metal ion doped TiO2. TiO2 loaded with optimum dopant content demonstrated superior band-gap narrowing and visible-light photo-catalytic activities. As a result of its ability to transfer both electrons and holes to the surface Gd-ions doped TiO2 was found to be the most photoactive.

Non-metal (anion) doping: Increasing visible light absorption by doping with anions has been considered since the end of the 1980s. Carbon, Fluorine, Sulfur, Boron, Phosphor and Halides are all known examples, but doping with nitrogen has attracted most attention since the first discovery of Sato et al. in 1986 [109]. It is easily incorporated in the TiO2 lattice due to its low ionization potential and comparable atomic radius to oxygen [110]. There is a general hypothesis that incorporation of anions with lower electronegativity than oxygen in the TiO2 lattice, results in an upward shift of the 2p-levels of the valence band and thus narrows the band gap, in contrast to cation doping that results in additional energy states within the band gap itself (Figure 5). At this point it is not 100% clear whether the N-related states are localized or intrinsically part of the band gap. Nitrogen can be easily introduced in the TiO2 structure, due to its comparable atomic size with oxygen, small ionization energy and high stability. It was in 1986 when Sato discovered that addition of NH4OH in a titania sol, followed by calcination of the precipitated powder, resulted in a material that exhibited a visible light response [111,112]. Later on, Asahi and co-workers [113] calculated the electronic band structures of TiO2 containing different substitution dopants including C, N, F, P and S. Substitution doping with N narrowed the band gap most significantly because its p state mixed with the O 2p states. In addition, molecular dopants like NO and N2 gave rise to bonding states below the O 2p valence band and anti-bonding states deep in the band gap (Ni and Ni+s) that were well screened and hardly interacted with the band states of TiO2. Model pollutants that have been reported to be effectively degraded by visible active titania photo-catalyst include phenols, methylene blue, methyl orange (although dyes have strong absorption in the visible range) and Rhodamine B, as well as several gaseous pollutants (e.g., volatile organic compounds, nitrogen oxides) [114].

For the efficient incorporation of nitrogen into TiO2 either in the bulk or as a surface dopant, both dry and wet preparation methods have been adopted. However, the most versatile technique for the synthesis of N–TiO2 nanoparticles is the sol–gel method, which requires relatively simple equipment and permits fine control of the materials nanostructure, morphology and porosity. Simultaneous TiO2 growth and N doping is achieved by hydrolysis of titanium alkoxide precursors in the presence of nitrogen sources. Typical titanium salts (titanium tetrachloride) and alkoxide precursors (including titanium tetra-isopropoxide, tetrabutyl orthotitanate) have been used. Nitrogen containing precursors used include aliphatic amines, nitrates, ammonium salts, ammonia and urea [115-117]. The synthesis root involves several steps; however, the main characteristic is that precursor hydrolysis is usually performed at room temperature. The precipitate is then dried to remove solvents, pulverized and calcined at temperatures from 200 to 600°C.

N-doped TiO2 was followed by other nonmetal doped titania photocatalysts such as carbon, sulfur, boron, phosphorus, flour and iodine. Sakthivel and Kisch [118] showed that C-doped TiO2 was five times more active than N-doped TiO2 toward the degradation of 4-chlorophenol by artificial light (λ ≥ 455 nm). Periyat et al. successfully developed S-doped TiO2 through modification of titanium isopropoxide with sulphuric acid. They found that formation of titanyl oxysulfate results in the retention of anatase at increased temperatures (≥ 800°C) and that the presence of sulfur causes increased visible light photo-catalytic activity of the synthesized materials [119].

P-doped TiO2 was prepared by a simple modified sol-gel method with hypophosphorous acid as a precursor, and it was found that P-TiO2 significantly increased the surface area of the photocatalyst and consequently provided a higher content of surface hydroxyl groups, thus elevating photo-catalytic activity [120]. The phosphorus doping extended the spectral response’s shift into the visible region, and represented more effective photo-catalytic degradation of the Methylene Blue (MB) and 4-chlorophenol (4CP) under visible light (>400 nm) irradiation.

Insertion of fluorine into the TiO2 crystal lattice has also been reported to elevate the anatase to rutile phase transformation temperature. Padmanabhan et al. [121] successfully modified titanium isopropoxide with trifluoroacetic acid carrying out a sol–gel synthesis. The resulting material proved to be more photo-catalytically active than Evonik P25 while also retaining anatase at temperatures of up to 900°C.

In general; the sol-gel process is one of the versatile methods to prepare nano-size materials. This technique does not require complicated instruments and provides simple and easy means for preparing nano-size particles. The incorporation of an active dopant in the sol during the gelation stage allows the doping elements to have a direct interaction with support, therefore, the material possesses catalytic or photo-catalytic properties. A typical preparation procedure by the sol-gel method of doped TiO2 is shown in Figure 6. Titanium precursor such as Titanium Isoprooxide (TIP), Tetrabutyl Orthotitanate (TBOT), titanium tetra chloride, is mixed with dopant precursor dissolved in alcohol, followed by hydrolysis performed at the room or elevated temperature. The precipitate is dried usually at temperature range from 80 to 110°C, pulverized to obtain xerogel and calcinated in air at temperature from 200 to 600°C (Figure 7).

material-sciences-photo-catalytic

Figure 6: Schematic diagram illustrating the possible photo-catalytic mechanism of Fe(III)/TiO2 involving interfacial electron transfer and multielectron oxygen reduction.

Heterojunction: Joining Different Semiconductors

Coupling of semiconductors having different band gap values is another method to efficiently utilize visible-light and enhancing the photo-catalytic activity. The necessary condition for coupling is that the conduction band level of at least one of the semiconductors must have a more negative value compared to the other. The electron injection mechanism in composite semiconductors can occur through the following mechanism (Figure 8). In the case of semiconductor hetero junctions, photogenerated electrons can be effectively transferred from the conduction band of one semiconductor to that of the other. The electron injection always occurs from the more negative conduction band to the less negative one.

There has been much interest in coupling different semiconductor particles with TiO2, with coupled samples such as TiO2- CdS, Bi2S3-TiO2, TiO2-WO3, TiO2-SnO2, TiO2-MoO3, and TiO2-Fe2O3 being reported [122129].

Coupling of TiO2 with CdS (band gap 2.4 eV) and SnO2 (band gap 3.5 eV) for visible-light induced water splitting and purification were previously investigated [130,131]. In this case, the small band gap CdS (CB=−0.76 eV) cause visible-light sensitization, and inject electrons to the conduction band of SnO2 (CB=−0.34 eV), which results in an efficient electron–hole separation and an increase of photo-catalytic activity. Doong et al. reported very high photo-catalytic activity of CdS coupled TiO2 towards the photo-catalytic decomposition of 2-chlorophenol [132]. The better photo-catalytic activity resulted from the electron injection from CdS to TiO2 and hole injection from TiO2 to CdS, which results in better charge separation. Kang et al. demonstrated the photodegradation of 4-chlorophenol using CdS–TiO2 composite semiconductor [133]. The photo-catalytic activities of the composite were found to be very high in comparison to that of CdS and TiO2 used separately.

material-sciences-sol-gel-method

Figure 7: Typical procedure of doped-TiO2 preparation by sol-gel method.

material-sciences-composite-semiconductor

Figure 8: Electron transfer mechanism in composite semiconductor.

Uddin et al. [134] used an impregnation method to introduce a transition-metal oxide of ruthenium oxide (RuO2) which possessed a high work function of about 6.1 eV on the sol-gel processed TiO2 nanopowders. The resulting RuO2/TiO2 mesoporous heterojunction exhibited a significant enhancement in the photo-catalytic activity due to the improved separation of photogenetrated electron-hole pairs resulting from the internal electric field. Several advantages can be achieved by adopting p–n junction: (1) more effective charge separation; (2) rapid charge transfer to the catalyst; (3) longer lifetime of the charge carriers; (4) separation of locally incompatible reduction and oxidation reactions in nanospace [135]. Furthermore, since the TiO2 material is a well-known n-type material, Nickel Oxide (NiO) which shows a p-type semiconducting nature with a high band gap of about 3.86 eV [136], it is also expected to be a promising candidate on contact to TiO2 since an additive pathway associated with the formation of an inner electrical field between the heterojunction which is favorable for the separation of the photo-generated electrons and holes to different semiconductors in the p-NiO/n-TiO2 heterojunction structure, can be achieved. A few groups have had success in preparing a NiO/TiO2 heterojunction and the improvements in the resulting photo-catalytic activity as a mechanism of the p-n junction have been discussed briefly [137].

Bi2S3 nanoparticles with a direct band gap of 1.28 eV are a good material for the photosensitization of nanocrystalline TiO2. The conduction band of Bi2S3 nanoparticles is less anodic than the conduction band of TiO2 and the valence band is more cathodic than the valence band of TiO2 [138], enhancing electron injection from the excited state of Bi2S3 into TiO2. Bessekhouad et al. [125] studied a Bi2S3/TiO2 junction prepared by precipitation of different concentrations of Bi2S3 onto TiO2. Bi2S3 absorbed a large portion of visible light and when the junction contained 10 wt% Bi2S3, the absorbance started at 800 nm.

The coupled system WO3/TiO2 has been used as a photocatalyst for decades. Both the upper edge of the valence band and the lower edge of the conduction band of WO3 are lower than those of TiO2, WO3 can be excited by illumination with visible light and the photogenerated holes can transfer from WO3 to TiO2. Song et al. [126] observed that loading of WO3 on the TiO2 surface improved the decomposition of 1,4-dichlorobenzene in aqueous solution by up to 5.9 times compared with pure TiO2. Because the standard reduction potential between W(VI) and W(V) is only –0.03 V, it was deduced that electrons in the conduction band of TiO2 could be easily accepted by WO3. The electrons in WO3 would then be transferred to the oxygen molecules adsorbed on the surface of TiO2. Grandcolas et al. [127] reported porogen template assisted sol-gel synthesis of coupled rutile-anatase TiO2 with a high surface area. It acted as a support for WO3, which extended the absorption to the visible region and improved the photocatalytic performance.

Interestingly, this type of charge separation can also occur in polymorphic TiO2 (i.e. co-presence of anatase and rutile). It has been suggested that the good photo-catalytic performance of commercial P25 (Evonik) is not only attributable to its nanocrystalline nature, but also to its polymorphic composition (roughly 80% anatase, 20% rutile). After the initial work of Bickley et al. [138] and several other researchers trying to unravel the synergy of anatase and rutile [139], Ohtani et al. concluded in 2010 that the different fractions of P25 behave independently, without any interaction [140]. However, one year later Su et al. [141] contradicted this finding in a convincing study that demonstrates the synergetic effect for anatase-rutile composites with an anatase content of at least 40% and rutile fraction of at least 20%. Their study was unique in that sense that different composite samples were prepared in which only the anatase/rutile ratio was altered. All other morphological parameters were kept constant. Since morphological parameters are ruled out of the equation, it can be expected that the synergy is an intrinsic catalytic property and thus applies to both liquid and gas phase reactions. A maximal synergetic effect was observed in their experiments for 60% anatase and 40% rutile, which was 50% higher compared to pure anatase [142].

Recently, Li et al. [130] synthesized a series of highly visible-light efficient semiconductors by combining N-doped ZnO with WO3, V2O5 and Fe2O3. In these composite semiconductors, visible-light activation was achieved through nitrogen doping and the small band gap semiconductors such as WO3, V2O5and Fe2O3were responsible for effective electron–hole separation. Coupling of TiO2 with WO3and V2O5were found to be more effective compared to Fe2O3 due to carrier recombination on Fe2O3. However, these composites were not suitable for hydrogen production due to the less negative position of WO3 and V2O5 conduction bands.

Environmental Application Of Photo-Catalysts

Over the last two decades, photo-catalysis with TiO2 nanoparticles has been shown useful for the degradation of wastewater pollutants. This process has several advantages including complete mineralization of organic pollutants like aliphatics, aromatics, polymers, dyes, surfactants, pesticides and herbicides to CO2, water and mineral acids, no waste solids to dispose of and mild temperature and pressure conditions. Photo-catalysis with TiO2 nanoparticles uses two kinds of reaction systems, namely suspension and immobilized systems [143]. Because the reaction area was large, it allowed highly efficient decomposition of harmful organic substances, unpleasant odors and colored matters present in wastewater. Recently, increasing research activity has been dedicated to investigating photo-catalytic materials that differ from TiO2 for detoxification of aqueous effluents, most aimed to achieve more efficient usage of solar light (Figure 9). A considerable variety of material alternatives to TiO2, most of them oxides but also some sulfides have been tested for aqueous pollutants degradation. Regarding pollutants, organic dyes are the most employed model compounds for photo-catalytic activity tests. The textile industry is a major consumer of water. It is estimated that it uses 378 billion liters per year in various processes such as mercerization, desizing, scouring, dyeing, and rinsing. With a total volume of wastewater of around 150 billion liters per year, the wastewater from textile production accounts for a large portion of the total industrial wastewater [144]. Colored industrial wastewaters may exhibit toxic, carcinogenic, and even mutagenic characteristics and as such present a serious hazard to aquatic organisms and humans. Among dyes, azo dyes are the largest group of synthetic dyes with estimated world annual production of around 500,000 tons [145] and are also the most abundant group that is discharged into the aquatic environment. However, it should be noted that, when using these kinds of molecules, dye sensitization of the semiconductor instead of direct excitation of the photocatalyst cannot be ruled out as a possible reaction mechanism (Table 1).

material-sciences-Industrial-waste-waters

Figure 9: Industrial waste waters.

Dyes MF M.Wt (gm/mol)
image C20H12N3O7SNa 461.38
image C32H22N6Na2O6S2 696.665
image C16H18ClN3S 319.85
image C14H14N3NaO3S 327.33
image C49H74N10O12 995.19
image C28H31ClN2O3 479.02
image C16H11N2NaO4S 350.32
image C20H17N3Na2O11S3 617.54
image C22H16N2Na2O11S3 626.55
image C36H23N5Na2O6S2 731.71

Table 1: Chemical structure, molecular formula and molecular weight of different dyes.

Photo-Catalytic Degradation Mechanisms of Dye

Photo-catalytic oxidation: The mechanism of the process has been briefly summarized here. It is well established that conduction band electrons (e) and valence band holes (h+) are generated when aqueous TiO2 suspension is irradiated with light energy greater than its band gap energy (Eg, 3.2 eV). The photogenerated electrons could reduce the dye or react with electron acceptors such as O2 adsorbed on the Ti(III)-surface or dissolved in water, reducing it to superoxide radical anion O2 •−. The photogenerated holes can oxidize the organic molecule to form R+, or react with OHor H2O oxidizing them into OH radicals. Together with other highly oxidant species (peroxide radicals) they are reported to be responsible for the heterogeneous TiO2 photodecomposition of organic substrates as dyes. According to this, the relevant reactions at the semiconductor surface causing the degradation of dyes can be expressed as follows:

Equation

The resulting ·OH radical, being a very strong oxidizing agent (standard redox potential +2.8 V) can oxidize most of azo dyes to the mineral end-products. Substrates not reactive toward hydroxyl radicals are degraded employing TiO2 photo-catalysis with rates of decay highly influenced by the semiconductor valence band edge position [146]. The role of reductive pathways (Eq. (16)) in heterogeneous photo-catalysis has been envisaged also in the degradation of several dyes but in a minor extent than oxidation [147].

Photosensitized oxidation: The mechanism of photosensitized oxidation (called also photo-assisted degradation) by visible radiation (λ>420 nm) is different from the pathway implicated under UV light radiation. In the former case the mechanism suggests that excitation of the adsorbed dye takes place by visible light to appropriate singlet or triplet states, subsequently followed by electron injection from the excited dye molecule onto the conduction band of the TiO2 particles, whereas the dye is converted to the cationic dye radicals (Dye•+) that undergoes degradation to yield products as follows [148]:

.

The cationic dye radicals readily reacts with hydroxyl ions undergoing oxidation via reactions 13 and 14 or interacts effectively with O2 •−, HO2 • or HO•− species to generate intermediates that ultimately lead to CO2 (Eqs. (23–29)).

Equation

In experiments that are carried out using sunlight or simulated sunlight (laboratory experiments) it is suggested that both photooxidation and photosensitizing mechanism occurred during the irradiation and both TiO2 and the light source are necessary for the reaction to occur. In the photo-catalytic oxidation, TiO2 has to be irradiated and excited in near-UV energy to induce charge separation. On the other hand, dyes rather TiO2 are excited by visible light followed by electron injection onto TiO2 conduction band, which leads to photosensitized oxidation. It is difficult to conclude whether the photo-catalytic oxidation is superior to the photosensitizing oxidation mechanism, but the photosensitizing mechanism will help to improve the overall efficiency and make the photo bleaching of dyes using solar light more feasible [149].

The New Promising Semiconductors In Photo-Degradation Of Dyes

Methyl Orange (MO) dye in water is highly visible, even at very low concentrations, which hinders the penetration of light and therefore causes adverse effects on photosynthesis [150]. Congo Red (CR) was the first synthetic dye that could dye cotton directly. It is contained in wastewater effluents from the textile, printing and dyeing, paper, rubber and plastics industries [151]. CR is used in medicine as a biological stain and as an indicator since it turns from red-brown in a basic medium to blue in an acidic one [152]. It can also be used as a secondary gamma-ray dosimeter since its coloration decays with the intensity of radiation [153]. Therefore, the effective decolorization of dye-containing wastewater is an important and challenging task that must be approached. Three different commercially available TiO2 nanoparticles were used: pure-phase anatase, pure-phase rutile, and mixed-phase preparation named Degussa P25 as semiconductor photocatalysts for the degradation of MO and CR dyes in an aqueous solution [154]. Since TiO2 particles become photo-catalytically active by UV radiation, two sources of UV-A radiation were used-natural solar radiation which contains 3-5% UV-A and artificial, solar-like radiation, created by using a lamp. The optimal doses of TiO2 of 500 mg/L for the CR and 1500 mg/L for the MO degradation were determined in experiments with the lamp and were also used in degradation experiments with natural solar light. The efficiency of each process was determined by measuring the absorbance at two visible wavelengths, 466 nm for MO and 498 nm for CR, and the Total Organic Carbon (TOC), i.e. decolorization and mineralization, respectively. In both cases, considerable potential for the degradation of CR and MO was observed total decolorization of the solution was achieved within 30-60 min, while the TOC removal was in the range 60-90%. CR and MO solutions irradiated without TiO2 nanoparticles showed no observable changes in either decolorization or mineralization.

Zero valent silver nanoparticle deposited TiO2 composite Ag/TiO2 showed a good efficiency for the degradation of MB under the UV-C irradiation [155]. The photo-catalytic activity of Ag/TiO2 essentially depends on the experimental conditions. The MB degradation rate increased with the increase in solution pH from 3 to 9. The decomposition of MB also increased with the increase in the mass of Ag/TiO2 from 0.025 g to 0.1 g and on further increase in catalyst mass, negative results were obtained. An efficient sonophoto-catalytic degradation of reactive blue19 (RB 19) using sulfur-doped TiO2 nanoparticles was reported recently [156]. In this method, coupling of ultrasound and photo-catalysis improved dye degradation through synergistic effect, which increased the amount of reactive radicals OH and H2O2. It is also proposed that ultrasound increases the mass transport between the solution phase and catalyst surface, and de-agglomeration of particles increase the surface area of the catalyst. N-doped TiO2 on glass spheres for Eriochrome Black-T decomposition [157], and CdO/TiO2 coupled semiconductor for Reactive Orange degradation [158].

(Yb, N)-TiO2 photocatalyst has been synthesized by sol–gel method combined with microwave chemical synthesis. Also, the efficiency of the (Yb, N)-TiO2 as a photocatalyst for the degradation of Methylene Blue (MB) using visible light irradiation has been evaluated [160]. Compared with the P25, N-doped TiO2 and Yb-doped TiO2, the (Yb, N)-co-doped TiO2 exhibits higher photoactivity under visible light. The significant enhancement in the photo-catalytic activity of the (Yb, N)-co-doped TiO2 is attributed to the synergistic effect of Yb and N. The N dopant extended the absorption to the visible region and Yb dopant was beneficial for suppressing the recombination of photogenerated electrons and holes.

The preparation of xAl–3%In–TiO2 photocatalyst by the sol–gel method was studied [161]. Aluminum and indium were simultaneously doped into anatase TiO2 matrix by substituting Ti4+ ions. The BET specific surface area of the sample 0.5%Al–3%In– TiO2 is higher than that of 3%In–TiO2, due to restrained crystal growing and smaller pore size. Ti–O–Al and Ti–O–In structures are found in the TiO2 lattice in the Al–In co-doped TiO2. The co-doped xAl–3%In–TiO2 materials have improved adsorption capacity and photo-catalytic activity. Total methyl orange de-coloration efficiency decreases from 100% to 85.9% on 0.5%Al–3%In–TiO2 after 6 reaction cycles, as compared to de-coloration efficiency dropping from 66% to 45.2% on 3%In–TiO2. Un-doped and several differently doped (with Fe3+, N-, and g-Al2O3) TiO2-nanoparticle based photocatalysts and those covered with ultra-small gold nanoparticles (AuNPs) were engineered [162]. Their photo-catalytic performance was studied by utilizing them for the liquid-phase decomposition of the model dye Methylene Blue (MB) under visible-light irradiation. Among various photocatalysts, Au/Al2O3-TiO2 showed the best performance for the MB photodegradation. Deposited AuNPs on the surfaces of all photocatalysts existed as Au0, and their photo-catalytic enhancement arises from the synergetic co-operation of the electron trapping ability of the AuNPs and dopant-induced band gap narrowing of TiO2. Among those, γ-Al2O3 doped TiO2 nanoparticles covered with deposited AuNPs show the best photo-catalytic performance. Ni (1 wt%)-, Pt (1 wt%)- and [Ni (0.5 wt%)/Pt (0.5 wt%)]-doped TiO2 nanoporous catalysts have been successfully obtained through a facile two-step hydrothermal route [163]. TiO2 crystallizes mostly in the anatase phase and acts as a mesoporous matrix. Meanwhile, Ni, Pt and Ni/Pt dopants form small nanoparticles (NPs) (3–95 nm in diameter) which are hosted by the TiO2 framework. The resulting composites exhibit a rather large surface area, in the range of 186–200 m2/g. The band gap energy reduces from 3.03 eV for the un-doped TiO2 to 2.15 eV for the Pt-loaded TiO2. As a consequence, absorption expands toward the visible light range. The photodegradation of Rhodamine B dye in aqueous medium has been investigated under UV–vis light irradiation. Higher degradation rates are achieved (63% for Pt-, 57% for Ni and 54% for Ni/Ptdoped TiO2 against 39% for un-doped TiO2).

ZnO has been frequently considered as an alternative to TiO2 for photo-catalytic applications, since it shows similar activity in certain conditions [164]. In general, higher photo-catalytic reaction rates were obtained with ZnO samples than with TiO2 Degussa P25, in spite of the low surface area of the ZnO samples. The authors attributed this elevated efficiency to the structural characteristics of the ZnO photocatalysts, which preferentially expose the unstable (100) face. The coupling of ZnO with other semiconductor has been also attempted in order to improve its photo-catalytic properties. Thus, ZnO/SnO2 and ZnO/ZnO2 coupled oxides have been evaluated for photo-catalytic degradation of aqueous methyl orange (MO) solutions [165] which resulted in faster degradation kinetics with respect to ZnO itself. The deposition of Fe2O3, WO3 and CdS onto ZnO substrates also led to higher activities compared to bare ZnO [166]. The increase in activity in these coupled systems is ascribed to charge separation at the interface, as it has been described for other semiconductor couples [167]. Similar to TiO2, another limitation of ZnO is its wide band gap (3.2 eV), which restricts light absorption to the UV region [164]. A possible strategy to extend ZnO absorption to visible light may be the modification of its valence band position by anionic doping, as has been achieved for TiO2 [168]. Nanodisks of ZnO and Co doped ZnO were synthesized by a facile wet chemical method and their structural, optical and photo-catalytic properties were studied [169]. The ZnO nanodisks and Co doped ZnO nanodisks exhibit very high photo-catalytic efficiency for sun light driven degradation of methyl orange dye.

The nanocrystalline Cu-doped TiO2/ZnO composite powder with TiO2/ZnO weight ratio of 7/3 and 3 wt% copper, calcined at 500°C was synthesised via sol–gel process, characterized and evaluated [170]. This composite presented a red shift in the absorption wavelength, notably narrowing the band gap (about 2.2 eV) compared to the pure TiO2 (around 3.32 eV) and ZnO (around 3.37 eV). The analysis revealed that this photocatalyst had favorable crystalline phase which affect photo-catalysis directly. The main aim was to analyse the sensitivity of photoactivity of Cu–TiO2/ZnO toward degradation of two important dyes (methylene orange and methyl blue) under visible light irradiation. The maximum removal efficiency of: color: 83.35%, COD: 73.54% and TOC: 54.46% for MO degradation and color: 75.50%, COD: 68.00% and TOC: 46.41% for MB degradation.

CeO2 has also received attention as a photocatalyst because of its interesting properties: stability under illumination and strong absorption of both UV and visible light. However, this material has been generally found to be less active than TiO2 under UV irradiation [171]. However, in contrast with titania, this oxide can be activated by visible (violet) light. Ji et al. [172] prepared mesoporous CeO2 photocatalyst using MCM-48 as a template in a replication process. The mesoporous materials showed a high surface area and a blue shift in their light absorption with respect to bulk CeO2, as observed in their UV–vis spectra. In the photo-catalytic degradation of Acid Orange 7 (AO7) under visible light, both bulk and mesoporous CeO2 led to faster degradation of the dye than TiO2 P25 from Degussa, but the mesoporous sample presented the best performance. No degradation of AO7 was observed in the absence of catalyst. More recently, the same group investigated the photo-catalytic degradation of AO7 under visible light (l>420 nm) over CeO2 nanoparticles [173]. Higher activity is found in CeO2 with respect to TiO2 (P25), which is attributed to a higher adsorption capacity of the lanthanide oxide, with no comments on the influence of the different light absorption onset of both catalysts. The degradation of the dye Acidic Black over CeO2 under solar irradiation has also been studied [174].

MoS2, as a two-dimensional structure, has a large specific surface area, strong absorption ability and the weak van der Waals gap, and shows many excellent properties such as intercalation, lubrication, anisotropy, chemically inertness, catalysis and so on [175]. As for its catalytic property, MoS2 has been widely used to remove S and N from crude oil [176]. What’s more, it has a potential application in photo-catalysis [177]. It is always used for combining with other semiconductors to form heterojunction structure with the purpose of improve the photo-catalytic activity of photocatalyst. TiO2-MoS2 composites showed higher photocatalytic efficiency for the photo-catalytic decolorization of Rhodamine B (RhB) aqueous solution under visible light irradiation [178].

There are several limitations to use nano-TiO2 with high surface activity as photocatalyst in the photo-catalytic reactor. One is fast aggregation of TiO2 in suspension leads to effective surface area decreased and furthers its catalytic efficiency reduction. Furthermore, a filtration step after photo-catalytic reaction is required because of TiO2 suspension. Attempts have been made to immobilize TiO2 on different supports like zeolites [179], clays [180], fiberglass [181], activated carbon [182], and carbon nanotube [183]. Incorporation of adsorbent into TiO2 has been considered a practical way to enhance the activity. It not only collects pollutants from dilute solution or open air to the vicinity active site of TiO2, but also retains them to be degraded by additional illumination. Zeolites have high surface area and porous structure, which have been used as conventional adsorbents. The fine titanium oxide photocatalysts loaded on zeolite have opened possibilities for photo-catalytic degradation of various organic pollutants with low concentration [184].

A novel approach for the synthesis of TiO2/MoS2@zeolite photocatalyst was developed by ultrasonic assisted hydrothermal method using micro-MoS2 as the photosensitizer [185]. The as prepared TiO2/MoS2@zeolite photocatalysts show highly enhanced photo-catalytic activity for degradation of MO under simulated solar light irradiation compared to that of Degussa P25 photocatalyst. MoS2 in the composites acted as an electron donor for the interfacial electron transfer, and thus enhanced the separation of the photo-generated electron/hole pairs. The micro-/nano-MoS2 formed inthe hydrothermal process can promote the formation of superoxide radical anions (O2 •−) in photo-catalytic reaction and the superoxide radical anions is the mainly oxidation species in the photo-catalytic reaction. Jiang et al. recently reported a novel ternary photocatalyst composed of TiO2– In2O3 nanocrystals decorated with graphitic carbon nitride g-C3N4 for dye degradation and H2 evolution [186]. These ternary composites exhibited the highest RhB degradation rate, which is 6.6 times higher than that of g-C3N4. H2-generation rate was 48 times of the pure g-C3N4. They attributed the enhanced photo-catalytic activity to efficient interfacial transfer of photogenerated electrons and holes among TiO2, In2O3 and g-C3N4. Other recent developments in the area of visible-light induced environmental cleaning involve the use of graphene oxide titania GO-TiO2 composites for Microcystin-LA removal [187]. An α-Fe2O3–TiO2/fly ash cenospheres (FAC) composite photocatalyst was prepared by depositing α-Fe2O3onto floating TiO2/FAC, which was synthesized via a simple sol–gel method [188]. Rhodamine B was selected as the model substance for photo-catalytic reactions to evaluate catalytic ability. Results showed that the degradation efficiency was close to 100% within 1 h. Active species measurements indicated that OH served as the dominating active species that played a key function in the reaction. A possible photo-catalytic degradation mechanism of α-Fe2O3–TiO2/FAC was also discussed based on experimental results.

Bismuth tungstate (Bi2WO6), with suitable band gap and intrinsic structure, has captured considerable attention for its photocatalytic effect on pollutant decomposition under visible light irradiation [189]. However, the practical application of Bi2WO6 is limited by its low photocarriers separation efficiency. Remarkable improvement of photo-catalysis under simulated sunlight irradiation was achieved by employing Bi2WO6/TiO2/Pt composite photocatalyst [190]. The high photo-catalytic performance benefited from the increased light harvesting efficiency owing to the excitation of both TiO2 and Bi2WO6 and the enhanced quantum yield due to the heterojunction between Bi2WO6 and TiO2 as well as the Schottky barrier between TiO2 and Pt. The superoxide radical originated from the electro-reduction of dissolved oxygen with photogenerated electrons was the main reactive oxygen species in Bi2WO6/ TiO2/Pt photo-catalytic process, and the hydroxyl radical derived from the reaction of holes and H2O was also responsible for pollutant degradation.

CuCrO2/TiO2 composite was prepared using hydrothermal synthesis and spin-coating method [191]. The photo-catalytic performance of CuCrO2/TiO2 was evaluated by degrading MB under UV irradiation. Both the degradation efficiency and apparent first-order rate constant of CuCrO2/TiO2 were enhanced in comparison to pure TiO2. The enhanced photo-catalytic activity could be attributed to a better separation efficiency of photogenerated electron–hole pairs, which caused by the formation of p–n heterojunctions in CuCrO2/TiO2. The proposed photo-catalytic mechanism of CuCrO2/TiO2was discussed for the first time.

Recently, magnetic composite particles that contain TiO2 were developed as heterogeneous photocatalysts [192]. These magnetic photocatalysts can be recovered by applying an external magnetic field and reused [193]. Spinel ferrite is a good candidate material for use in supports for the photo-catalytic degradation of dyes or organic compounds [194]. Effects of ferrite materials as supports (CoFe2O4, NiFe2O4, and Fe3O4) on nano-TiO2 were synthesized by co-precipitation and elucidated by their use in the oxidation of methylene blue [195,196].

The crystalline phase of TiO2 onto magnetic MFe2O4 was formed by anatase and rutile. TiO2/CoFe2O4 exhibited the strongest magnetic property of the prepared catalysts, and the photo-catalytic efficiencies followed the order TiO2/CoFe2O4>TiO2/ NiFe2O4>TiO2/Fe3O4. MB de-colorization was enhanced with the amount of TiO2 on the photocatalyst, and was moderately affected by the extent of structural distortion of ferrite supports.

Semiconductor photo-catalysis involves the formation of electron-hole pairs, which is initiated by band gap excitation of the semiconductor particle. Photo-catalysis appears to be promising as a route for selective synthetic transformations or as an advanced oxidation process for environmental cleanup. Over the past few decades, continuous breakthroughs in the synthesis and modification of TiO2 have realized new properties and applications with improved performance. In this paper, an overview of the properties, modification and selected applications of TiO2 as well as its novel prospects is presented. Some of the major problems associated with photo-catalysis are rapid charge recombination and back reaction and an inability to use visible light efficiently. Addition of electron donors can enhance photo-catalytic activity by irreversibly reacting with valence band holes to prevent charge recombination. Doping of TiO2 can inhibit charge recombination and expand its photo-response to the visible region through the formation of impurity energy levels. Coupling of semiconductors can also expand the light response of TiO2 to the visible region. Novel modifications of TiO2 and photodegradation mechanism of dye have been reviewed.
