ANALYSIS OF NONLINEAR SPEED-TORQUE PERFORMANCE OF SRM WITH FUZZY BASED NONLINEAR CONTROLLER

BASANT KUMAR NAYAK1, CH. RAVI KUMAR2
  1. PG Student, Department of EEE, Aditya Institute of Technology & Management, Tekkali, AP, India
  2. Associate Professor, Department of EEE, Aditya Institute of Technology & Management, Tekkali, AP, India
Related article at Pubmed, Scholar Google

Visit for more related articles at International Journal of Advanced Research in Electrical, Electronics and Instrumentation Engineering

International Journal of Advanced Research in Electrical, Electronics and Instrumentation Engineering

Abstract

By the use of linear controller the analysis of performance of SRM is not sufficient because of stator inductance of stator winding of SRM is function of rotor position, so here proposed to be design the nonlinear controller i.e. fuzzy based controller which converge the comparison analysis of SRM based on speed error and its change with respect time domain specification. Neural network and fuzzy logic technique are unique technique in which process the information specify by mathematical equation and compare with linear model of SRM. Arificial Neural Networks technique along with PI and Fuzzy PI has been implemented to design the controller to increase their performance. The comparison results give the more idea about the performance of SRM.

Keywords
reluctance motor, fuzzy logic controller, PI controller, membership function, FLPI controller .

INTRODUCTION
Switched reluctance motor is named as for produce the variable reluctance followed by it require switching inverter to drive it. In SRM both stator an rotor have salient pole hence the motor is doubly salient machine and stator as well as different magnetic reluctance along various radial axis. Generally most nonlinear system are characterized by certain parameter which complicate their control as well as to improve their performance.SRM are very nonlinear in nature due to their operation with high magnetic saturation condition. It produces high nonlinear reluctance torque between stator and rotor when the stator winding is energized. Secondly phase flux linkage and instantaneous phase torque are nonlinear function of phase current and rotor position. By controlling the instantaneous phase current, torque of SRM can be regulate.
The switched reluctance motor (SRM) is a type of reluctance motor, an electric motor that runs by reluctance torque. Unlike common DC motor types, power is delivered to windings in the stator (case) rather than the rotor. This greatly simplifies mechanical design as power does not have to be delivered to a moving part, but it complicates the electrical design as some sort of switching system needs to be used to deliver power to the different windings. With modern electronic devices this is not a problem, and the SRM is a popular design for modern motors. Its main drawback is torque ripple. The principle of operation, Controlling Techniques,

PRINCIPLE OF OPERATION
The SRM has wound field coils as in a DC motor for the stator windings. The rotor however has no magnets or coils attached. It is made of soft magnetic material (laminated-steel protuberances).
When power is delivered to the stator windings, the rotor's magnetic reluctance creates a force that attempts to align the rotor with the powered windings. In order to maintain rotation, adjacent windings are powered up in turn. As the stator does not turn, the switching of power from winding to winding may be difficult to arrange in a fashion that is properly timed to the movement of the rotor - brushes could be used, but this would eliminate most of the advantages of the design. Instead, in modern designs a high-power electronic switching system is used, which also offers advantages in terms of control and power shaping.A.Electromagnetic system equation of SRM
A.Electromagnetic system equation of SRM
Generally in SRM configuration ,there are one or more phases excited. During a phase exciting the voltages u is applied to SRM phase and the resulting current which depending upon derivative of flux linkage ψ for that particular phase of SRM and the relative equation are as follows.
image(1)
The above equation (1) can be rewritten to:
image(2)
The instantaneous torque produced in one phase of SRM is given as below
image(3)
Where
imagethe differential change in co-energy with respect to rotor position Which can be evaluated at constant phase current.
The electromagnetic torque, which is sum of all instantaneous torque of SRM can be written as
Mechaniimage(4) expressed as below:
`image(5)here TL is the load torque, ωr is the rotor speed, j and B are respectively the moment of inertia and the coefficient of friction. When equation (5) is re-arranged in order to write the speed expression,B.Fuzzy Logic
B.Fuzzy Logic

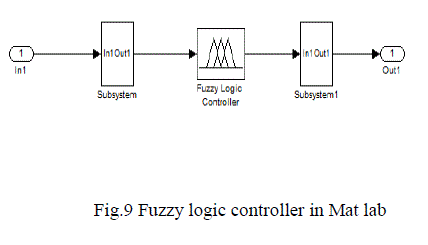

Fuzzy logic is technique to embody human like thinking in control system. A fuzzy control can be designed to try equal human thinking Fuzzy control system consists of the four blocks as shown in figure.
A fuzzy control system with n inputs and one output is characterized with a base of knowledge expressed as results. The results are connected by “else”, the method of evaluating entries in relation to fuzzy sets (fuzzyfication) and a method of passing blur the real output Y (defuzzyfication) .Inference systems evaluate all the rules and establish a conclusion.
C.Dynamic model of SRM
When the input voltage and rotor position is known, By using dynamic model to obtain the phase current and phase torque. Secondly dynamic model is obtain by combining electrical equation and mechanical equations.
`D.Speed control of SRM
In this paper FLPI, FPI and NSTFPI controller with ANN tuning is used as the speed controller. The system also consists of a hysteresis band controller which does current control, a converter and a trigger circuit which drives the switches in the converter into conduction or cut off.

APPLICATION OF NSTFPI CONTROLLER
The NSTFPI controller with ANN tuning used as the controller in the speed control of SRM is seen in figure The NSTFPI controller consists of two parts; the FLPI and the self-tuning mechanism. The purpose of self-tuning is to increase the controller performance byimproving Δi∗(k), the output of the controller. For this aim ANN is used as the self-tuningmechanism. The NSTFPI controller has two input variables and one output variable. The input variables are E(k) and CE(k), while the output variable is Δi∗(k).
The input and output variables of NSTFPI controller can be defined as E(k) = e(k) · G (7)
where e(k) is the error between reference speed and rotor speed, ce(k) is the change of error in speed, ΔI (k) is the output of the fuzzy logic controller, and Ge, Gce and GΔi are scaling factors.
A.Control
The control system is responsible for giving the required sequential pulses to the power circuitry in order to activate the phases as required. While it is possible to do this using electro-mechanical means such as commutators or simple analog or digital timing circuits, more control is possible with more advanced methods.
Many controllers in use incorporate programmable logic controllers (PLCs) rather than electromechanical components in their implementation. Here this paper is implemented using PID, FUZZY PID, NEURAL NETWORKS for controlling the Switched Reluctance Motor. This concept is implemented using MATLAB 2009 A and the results are analyzed.

CONCLUSION & FUTURE SCOPE
Generally to increase the performance of switched reluctance motor can be done by either designing the magnetic circuit of SRM or design the control circuit of SRM. By analysis the design of different non linear control circuit, concluded that the performance of NSTFPI controller with ANN tuning is superior over other linear and non linear controller with rise time.
Neural technology, particularly neuro-fuzzy techniques has advanced rapidly in recent year and its potential for application in electrical machine seems enormous.

Figures at a glance
Figure 1 Figure 2 Figure 3 Figure 4 Figure 5
Figure 1 Figure 2 Figure 3 Figure 4 Figure 5
Figure 6 Figure 7 Figure 8 Figure 9 Figure 10
Figure 6 Figure 7 Figure 8 Figure 9 Figure 10

References
  1. Akcayol MA 2004 Application of adaptive neuro-fuzzy controller for SRM. Advances in Engineering Software 35: 129–137
  2. Chen H, Zhang D, Cong Z-Y, Zhang Z-F 2002 Fuzzy logic control for switched reluctance motor drive. Proc.of the 1stInt. Confer. on MachineLearning and Cybernetic, Beijing, 145–149
  3. Cheok A D,Wang Z 2005 Fuzzy logic rotor position estimation based switched reluctance motor DSP drive with accuracy enhancement. IEEE Trans.on Power Electronics 20: 908–921
  4. Ho W K, Panda S K, Lim K W, Huang F S 1998 Gain-scheduling control of the switched reluctance motor. Control Eng. Practice 6: 181–189
  5. Hudson C, LoboNS,KrishnanR2004 Sensor less control of single switched based switched reluctance motor drive using neural network. The 30thAnnual Conference of The IEEE Industrial Electronics Society, Korea, 2349–2354
  6. Husain I, Hossain S A 2005 Modelling, simulation, and control of switched reluctance motor drives. IEEE Trans. on Ind. Electronics 52: 1625–1634
  7. Inanc N, Ozbulur V 2003 Torque ripple minimization of switched reluctance motor by using sliding mode control technique. Electric Power SystemsResearch 66: 241–251
  8. Kioskeridis I, Mademlis C 2005 Maximum efficiency in single-pulse controlled switched reluctance motor drives. IEEE Trans. on Energy Conversion20: 809–817
  9. Kjaer P C, Gribble J J, MillerTJE 1997 High-grade control of switched reluctance machines. IEEE Trans. on Industry Appl. 33: 1585–1593.
  10. MillerTJE 2001 Electronic control of switched reluctance machines, Newnes Power Engineering Series (Oxford: Newnes Publisher)
  11. Miller T J E 2002 Optimal design of switched reluctance motors. IEEE Trans. on Ind. Electronics 49:15–27
  12. Paramasiwam S, Arumugam R 2005 Hybrid fuzzy controller for speed control of switched reluctance motor drives. Energy Conversion and Manag.46: 1365–1378
  13. Rodrigues M G, Suemitsu W I, Branco P, Dente J A, RolimLGB 1997 Fuzzy logic control of aswitched reluctance motor. IEEE Int. Symp. on Ind.Electronics (ISIE’97), Portugal, 527–531
  14. Rodrigues M G, Suemitsu W I, Branco P, Dente J A, RolimLGB 1997 Fuzzy logic control of a switched reluctance motor. IEEE Int. Symp. on Ind.Electronics (ISIE’97), Portugal, 527–531
  15. Sahoo S K, Panda S K, Xu J-X 2005 Indirect torque control of switched reluctance motors using iterative learning control. IEEE Trans. on PowerElectronics 20: 200–208
