Simulation and Performance Analysis of Efficient Wireless Channel in WiMAX MIMO Using Real Time Data Transmission

Vaidehi J. Sojitra1, Dr. Bhavin S. Sedani2
  1. M.E., Research Scholar, Department of ECE, V.V.P. Engineering College, Rajkot, Gujarat, India
  2. Associate Professor, Head, Department of ECE, V.V.P. Engineering College, Rajkot, Gujarat, India
Related article at Pubmed, Scholar Google

Visit for more related articles at International Journal of Innovative Research in Computer and Communication Engineering


This paper presents the simulation and performance evaluation of WiMAX MIMO (worldwide interoperability for microwave access) system along with efficient wireless channels using real time data transmission. In order to visualize and understand the effects of real time environment over system performance, it is essential to analyze the real time fading channels i.e. Rayleigh channel and Rician channel. As in the real life scenario it is not possible to have unified distribution of fading over the entire communication channel. The present paper enhances the current status of WiMAX MIMO system along with the modelling of suitable wireless channels i.e. AWGR, Rayleigh and Rician in order to control BER of the system. Further with the variation of different channel parameters for real time data transmission through WiMAX MIMO system, the structure compatible to practical scenario can be implemented through this, Modelling using antenna diversity principles in order to control BER of the system. The central objective of this paper is to built up the real time model for the WiMAX MIMO system along with the suitable wireless channels compatible to various atmospheric conditions for the signal propagation.




WiMAX stands for worldwide interoperability for microwave access is IEEE802.16 standard based technology which is basically responsible for bringing the broadband wireless access to the world as an alternative to wired broadband. It is capable of providing broadband wireless access up to 50km for fixed station and 5-15km for mobile station with data throughput up to 70mbps.
The WiMAX network is similar to that of a cell phone. When the data is send by a user from a subscriber device to a base station then that base station will further broadcast the wireless signal into channel which is termed as uplink vice versa when the base station transmit to the same or another user is called downlink. Here the base station of WiMAX is provided with higher broadcasting power antennas. The broadband service of WiMAX technology is available in coverage areas. This coverage area is further separated in series of over lied areas known as channel. The wireless connection is transferred from one cell to another when a user sends data from one location to another. The architecture of WiMAX is based on connection oriented that is MAC layer. The central aim to design WiMAX system is to facilitate large number of user with a variety of connection per terminal. The important feature of WiMAX includes interoperability, long range, handoff, quality of service etc.
MIMO (Multiple Input Multiple Output) involves the transmission and reception of data is through two or more than two spatially separated antennas. The main advantages of MIMO channel are the array gain, the diversity gain and the multiplexing gain. The present paper discusses the model building of WiMAX MIMO physical layer using simulink in matlab and models proves to be a useful tool for the performance evaluation of the WiMAX MIMO system under various efficient wireless channels using the real time data.


The model discussed in this paper is built on QAM modulation scheme and OFDM technique based on the platform of matlab R2009a. The model consist of transmitter, receiver and channel as their main parts. In first case AWGN channel is considered. As shown in figure 1 input is provided in the form of image which consist of 256x256 image with 96 samples per frame with 1/35 sample time for the process of frame based output. Once the data is received the process of randomization is performed which will be applied for encoding. The encoder of the WiMAX MIMO system consists of outer Reed-Solomon (RS) CODE and inner Convolution Code (CC). Further the encoded baseband data is modulated by QAM and applied for OFDM process because the physical layer of WiMAX system is made up of OFDM in phase and quadrature phase component of the symbol will undergo through the process of IFFT so that requirement of effective bandwidth can be made approximately half without any inter symbol interference.
Here in this case for simulation purpose, the communication medium is considered to be suitable for long distance system wherein average fading is assumed to be constant throughout the path. AWGN channel is the simplest type of channel that has noise distribution with a constant power spectral density with Gaussian nature of PDF over the whole channel bandwidth [1]


To model the WiMAX MIMO system with the consideration of practical wireless scenario, the AWGN channel of the previous design should be replaced by such a channel which will characterize the actual features of the practical real time wireless path. The appropriate option is modeling of Rayleigh channel between transmitter and receiver of WiMAX MIMO system which describes the phenomenon of mobile communication system, i.e. fading. Fading results from the rapid fluctuations in the amplitude, phase or frequency of the signal because of multipath propagation of radio waves.
In MIMO system due to multipath structure of the wireless channel, different paths are taken by the signals component to reach towards receiver, which interferes with each other and results in fading. When we consider urban areas where line of sight is very rarely available, to model WiMAX MIMO system in densely populated area, the Rayleigh channel modeling is the most appropriate one for simulation. Here in this case the AWGN channel is being replaced by the combination of Rayleigh and AWGN channel in order to analyse the effects of practical short term and long term fading along with the Gaussian noise effect rest all the blocks remains the same as shown in figure 2.


The third variation of this paper includes the modeling of WiMAX MIMO system with the replacement of Rayleigh channel by Rician channel. When we consider the sub urban areas, where there is possibility of realizing the line of sight path along with multipath structure, the wireless channel should be a Rician channel. In this channel the multipath variation of the signal are superimposed over the line of sight component which finally increases the overall strength of the entire information at the receiver. The figure-3 shows the snap shot of traditional WiMAX MIMO model with the cascaded combination of two Rician and two AWGN channel.
Rician fading is characterized by a factor which is expressed as the power ratio of the secular (los or dominant path) component to the diffused component. This ratio k, defines how near to Rayleigh statistics the channel is. In fact when k= infinite, there is no fading at all and when k=0, this means to have Rayleigh fading. The average path gain vector parameter controls the overall gain through the channel, the K-factor parameter controls the gain‟s partition into lineof- sight and diffuses components. The other blocks and properties of WiMAX MIMO model remains the same which is shown in figure-3.[1]
By modeling the WiMAX system under the fading constraints, with the propagation of image and speech inputs, the outputs get degraded with sudden jerk of noise at some parts rather than distributed noise as in the case of AWGN channel. But the span of this fading can be reduced in this channel as compared to that in the Rayleigh channel because of the presence of LOS component. The factor that decides the amount of fading is the gain factor of the line of sight path.

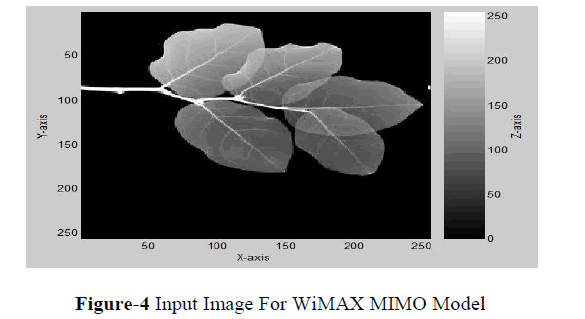

The figure-4 shows input data which is provided for all the three channel types.

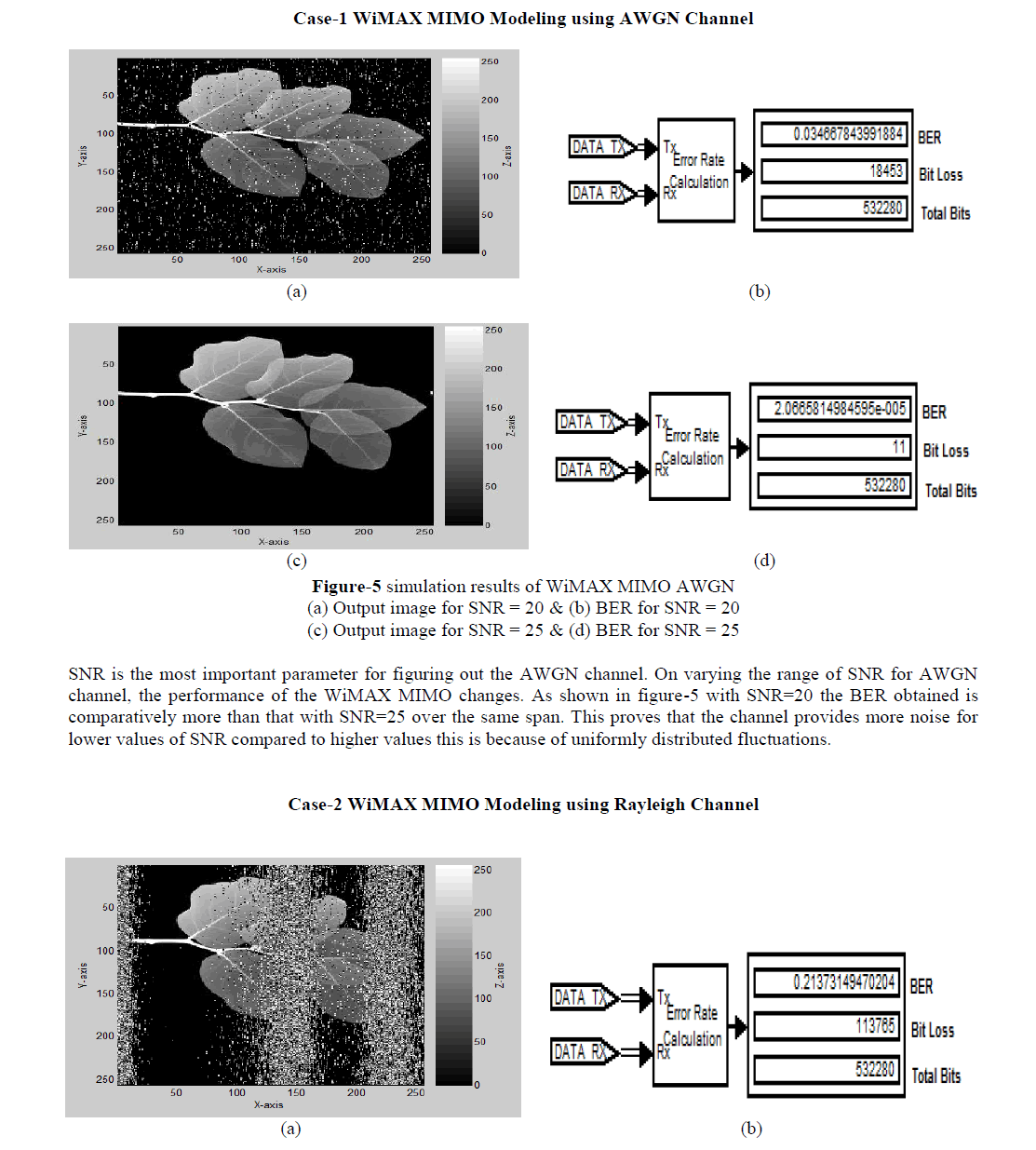

From the simulation results of WiMAX MIMO system with Rician channel, it shows that practically the Rician channel is more or less same as the Rayleigh channel except the presence of line of sight component along with multipath structure. Also on changing the value of gain factor „k‟ with Rician channel, the performance of the WiMAX MIMO system gets improved in terms of BER at constant SNR. The degradation span is larger for k=1 as compared to the value k=2 which is clearly shown in the figure-7


The models implemented in this paper demonstrates the complete real time scenario for WiMAX MIMO system with the various channel conditions such as high quality long distance communication channel , multipath structured urban or sub-urban channel with certain possibility of line of sight path. The paper deals with the complete analysis of WiMAX MIMO system by transmitting real time data i.e. image with the modeling of AWGN, Rayleigh and Rician channel under the variation of different parameters. In order to realize the ideal conditions of propagation of WiMAX MMO system, the modeling can be done by assuming the long distance highly efficient path i.e. AWGN channel. For figuring out the real time multipath structure of WiMAX MIMO model, the channel is simulated as Rayleigh channel in worst scenario wherein the performance in terms of fading can be improved by changing the value of Doppler shift. With the same criterion, the presence of line of sight can be justified by modeling WiMAX MIMO with Rician channel.


1. Nirali A. Kotak, Bhavin Sedani, Ved Vyas Dwivedi, Simulation & Performance Analysis of DVB-T System Using Efficient Wireless Channels, 2011 International Conference on Computational Intelligence and Communication Networks, October 07-09, Gwalior-India. IEEE Xplore- ISBN: 978-0-7695-4587-5.

2. Sassan Ahmadi, Intel Corporation (2009), An Overview of Next-Generation Mobile WiMAX Technology, IEEE Communications Magazine, Volume: 47, Issue: 6, pp. 84-98. ISSN: 0163-6804.

3. Amitabh Kumar, “Mobile Broadcasting with WiMAX: Principles, Technology and Applications”, Focal Press Media Technology Professional Elsevier-2008.

4. Nedeljko Cvejic and Seppanen, Tapio (2003), Rayleigh Fading Model versus AWGN Fading Channel Model in Audio Watermarking, Thirty- Seventh Asilomar Conference on Signals, Systems and Computers, 2003, Issue Date: 9-12 Nov. Vol.2, pp.1913 – 1916, Print ISBN: 0-7803- 8104-1.

5. Muhammad Nadeem Khan, Sabir Ghauri, “The WiMAX 802.16e Physical Layer Model”, IEEE Xplore.

6. Yu-Jin Song, Seong-WeonKo, Hyun-Jin Park, Hun-Hee Lee And Hyoung-Kyu Song, “A Novel Efficient Detection Scheme For Hybrid STBC In MIMO-OFDM Systems”, IEEE, Year 2010.

7. A. L. F. de Almeida, W. C. Freitas Jr., J. C. M. Mota, F.R.P. Cavalcanti and R. L. de LacerdaNeto, “Performance Of MIMO Systems With A Hybrid Of Transmit Diversity And Spatial Multiplexing”, IEEE, Year2003.

8. Sarla More, Dr. Durgesh Kumar Mishra, “4G Revolution: WiMAX Technology”, IEEE, Year 2012.
