A Study of Tribological Behavior of Titanium and Chromium based Nitride Monolayer and Nano-structured Multilayer Thin Films Prepared Using Advanced Cathodic Arc Deposition for Improving Performance of Industrial Tooling and Components

Goswami VH*1, Nadkarni MS1, Thorat N2 and Mahtre U2

1S.S & L.S Patkar-Varde College of Arts & science And V.P Varde College of Commerce & Economics, S.V Road, Goregaon (W), Mumbai-400105, India

2Surface Modification Technology Prvt. Ltd – Vasai Palghar, India

*Corresponding Author:
Goswami VH
S.S & L.S Patkar-Varde College of Arts & science And V.P Varde College of Commerce & Economics
S.V Road, Goregaon (W), Mumbai- 400105, India
Tel: +022 2872 2014
E-mail: vishalgiri.h.goswami@gmail.com

Received date: 13/07/2016; Accepted date: 26/07/2016; Published date: 28/07/2016

Visit for more related articles at Research & Reviews: Journal of Pure and Applied Physics


In recent years thin film coatings of transition metal nitrides have received considerable interest due to their high hardness and toughness. There are a huge range of Surface coatings available for many different industrial applications. TiN and CrN will be selected for erosion resistant coatings due to their high hardness, good corrosion and oxidation resistance, and the relative ease in which they will be deposited as both monolayer and multilayer coatings using advanced cathodic arc deposition. The success of these coating will depend upon the increase in the life time of the coated industrial tools. These films were deposited in the form of monolayer and nano-structured multilayers using advance cathodic arc process to produce coatings that can have flexibility to modify the surface properties as per the need of application. Two types of coating structures viz CrN-Cr and TiN-CrN were fabricated for the evaluation. CrN-Cr is the Hard and Soft layer combination whereas TiNCrN is the Hard and hard coating combination. These structures have been compared with mono-layers of CrN and TiN. The investigation includes micro hardness, roughness test Corrosion Rate Measurement (potentiostat) and wear coefficient. Coating thickness measured with Calo-test (Ball crater) instrument, Mercedes test using Rockwell C instrument, and the structures of coatings were investigated using the SEM. The XRD analysis was carried out to specify the phase structure. As compare to Hard and Soft layer combination, Hard and Hard layer combination shows improved tribological properties.


Advanced cathodic arc deposition; Nano-structured multilayers; Hard and soft layer; Hard and hard coating; Industrial tools.


Recently, the tribological performance of CrN coating has been demonstrated a good protective coating candidate due to its high hardness [1], good thermal conductivity and chemical stability [2].

Nowadays fabrication technologies require tools to have improved reliability, durability [3] aesthetic appearance/decorative applications and long-life operation which greatly depends on their tribological and corrosion properties [4]. These include hard and wear resistant nitrides coatings of Ti and/or Cr on tools and automotive components [5].

In present study, coatings were produced by advanced cathodic arc deposition (ACAD) this process is one of the most suitable due to high deposition rate during growth [6].

Experimental Details

Material and sample preparation

In the current investigation an advance cathodic Arc system were used to deposit mono-layer and multilayer coatings on Oil Hardened Non-shrinking Steel (OHNS) and mirror polished stainless steel (SS 316-L) coupons having dimension 50 mm diameter (ϕ) and 8 mm thick. These samples were thoroughly cleaned using ultrasonic bath having organic solvents followed by degreaser to remove surface contaminations. The roughness of these coupons was maintained at 0.024 micron. Cleaned samples were deposited with TiN, CrN monolayers, CrN/Cr Multilayers and TiN/CrN bi-layer, TiN/M-CrN under ultra-high vacuum condition in ACAD equipment. UHP nitrogen gas and 99.97% pure Ti and Cr targets were used during deposition.

Various characterization tools such as, Calo wear, SEM, Surface roughness were used to evaluate the tribological properties of these coatings.

Results And Discussion

Surface roughness analysis of TiN, CrN, MCrN, TiN/CrN and TiN/MCrN thin films shows a radical reduction in the density as well as size of micro particles. SEM photographs (Figures 1 and 2) shows clear evidence of the same which is further complimented by the Ra value analysis (Figures 3 and 4). Coating adhesion is also estimated by Mercedes test to confirm the adequate adhesion straight between substrate and thin films (Figure 5).


Figure 1: SEM photographs.


Figure 2: SEM photographs.


Figure 3: Ra value analysis.

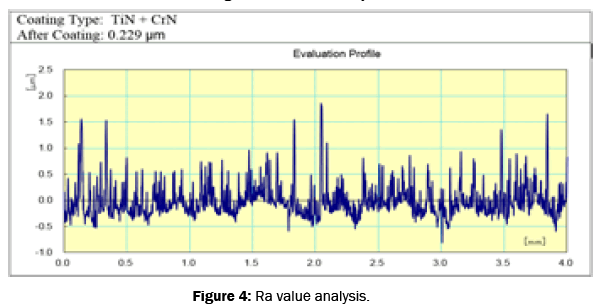

Figure 4: Ra value analysis.

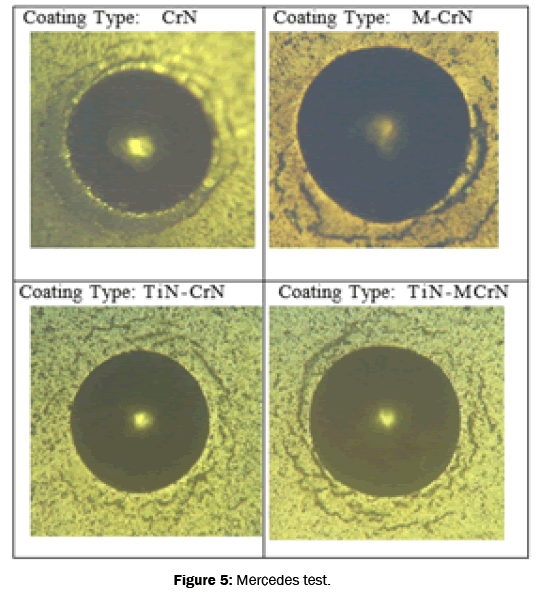

Figure 5: Mercedes test.

Calo-wear test (Figure 6) has been carried out to evaluate the coating thickness as well as wear rate of these coating combinations. A soft stainless steel base coated with hard coting (TiN, CrN, M-CrN) shows higher wear rate as compared to a Bi-layer system consist of stainless steel base with Hard coating (TiN) and other Hard Coating (CrN, M-CrN). MCrN coating shows less wear rate as compared to CrN or TiN whereas TiN+M-CrN shows further reduction in the wear rate (Figure 7).


Figure 6: Calo-wear test.


Figure 7: Calo-wear test.

The Coating Wear Measurement is done by Calotest with the load of 0.188 N as shown in the Table 1.

Coating Type Wear Coefficient
SS +CrN 7.86 X 10-14 m2/N
SS + M-CrN 7.02 X 10-14 m2/N
SS +TiN + CrN 6.80 X 10-14 m2/N
SS +TiN + M-CrN 5.88 X 10-14 m2/N

Table 1: The Coating Wear Measurement is done by Calotest with the load of 0.188 N.

These results clearly show that as the base hardness is improving wear rate also tend to reduce. Coating Surface roughness also contributes to this reduction in wear rate. Hard-Hard coating combination revel improved wear resistance as compare to Soft- Hard coating combination.

In our earlier studies we have shown clear evidences of improvement of the corrosion resistance of the hard-hard and hardsoft coating systems (Figure 8). These results complement our present analysis.


Figure 8: Corrosion resistance test.

These results help to understand the wear mechanism as a combination of base and coating. In various industrial applications, selection of base material is always limiting factor as there are limited options available. But by choosing appropriate coating one can easily compensate the limitations of the base material.

Multi-layers structure of hard and soft coating combination with hard base is resulted into the best combination. May be such variations can also be possible with various other hard coatings to tailor the surface properties of the industrial components to achieve the required performance level.


Above results clearly show that the substrate hardness has direct impact on the coating properties of CrN and M-CrN coatings. Soft stainless steel substrate results in to higher wear rate as compared to the harder surface. Hard Intermediate layer of TiN is used to increase the hardness of the stainless steel substrate. Therefore, by adjusting the substrate hardness, one can tailor the effective wear rate of the system and can be used in the respective industrial applications.
